Adams Rite Cylinder-Operated Flushbolt

PART # CH-595

$337.70 USD

PART # CH-595

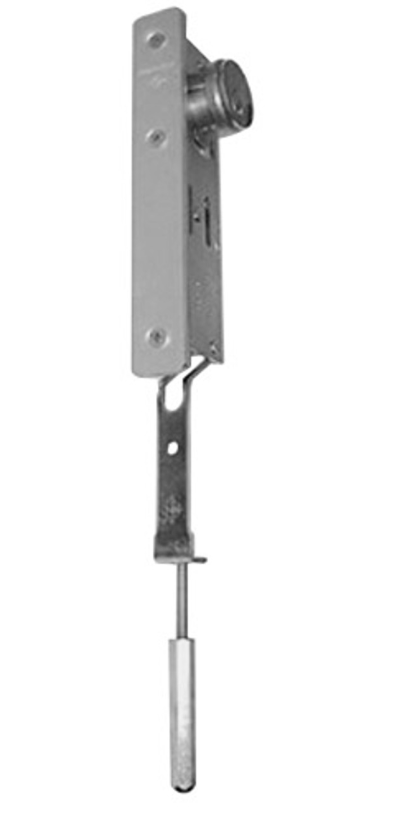

Designed for use instead of conventional flip-lever operated flushbolts, 1877 Cylinder-Operated Flushbolts give building management key control of the inactive leaf of paired wood doors. Prevents casual locking of the inactive leaf by unauthorized persons. Uses same basic over-center action mechanism as MS® pivoted bolt deadlocks. Recommended for installation at both top and bottom of inactive door with MS1837 MS Two-Point Deadlock in active door for greatest security. May be installed to lock at threshold or at header.

Sold By: Each

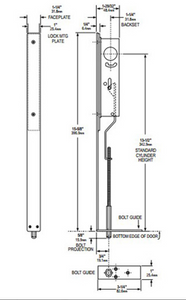

Cylinder Backset: 1-1/4" [31.8 mm] only.

Cylinder Height: Standard length (cylinder center to door end) is 13-1/2" [342.9 mm]. Please contact factoryfor other lengths available by special order.

Case: Steel with corrosion-resistant plating. Measures 1" x 6" x 1-29/32" [25.4 mm x 152.4 mm x 48.4 mm].

Bolt: Stainless steel. Hexagonal 3/8" [9.5 mm]flat to flat, with 11/16" [17.5 mm] throw.

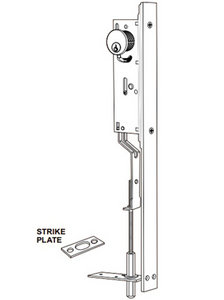

Strike: 2-1/4" x 15/16" [57.2 mm x 23.8 mm] strike is supplied.

$337.70 USD
Title
In stock

Designed for use instead of conventional flip-lever operated flushbolts, 1877 Cylinder-Operated Flushbolts give building management key control of the inactive leaf of paired wood doors. Prevents casual locking of the inactive leaf by unauthorized persons. Uses same basic over-center action mechanism as MS® pivoted bolt deadlocks. Recommended for installation at both top and bottom of inactive door with MS1837 MS Two-Point Deadlock in active door for greatest security. May be installed to lock at threshold or at header.

Sold By: Each

Cylinder Backset: 1-1/4" [31.8 mm] only.

Cylinder Height: Standard length (cylinder center to door end) is 13-1/2" [342.9 mm]. Please contact factoryfor other lengths available by special order.

Case: Steel with corrosion-resistant plating. Measures 1" x 6" x 1-29/32" [25.4 mm x 152.4 mm x 48.4 mm].

Bolt: Stainless steel. Hexagonal 3/8" [9.5 mm]flat to flat, with 11/16" [17.5 mm] throw.

Strike: 2-1/4" x 15/16" [57.2 mm x 23.8 mm] strike is supplied.
