Shower Door 6" Cologne Pull and Hinge Set

PART # BH-162BN

$260.38 USD

PART # BH-162BN

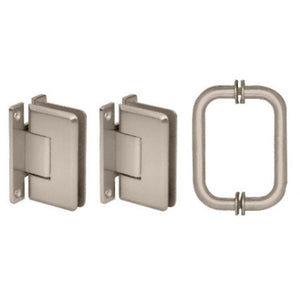

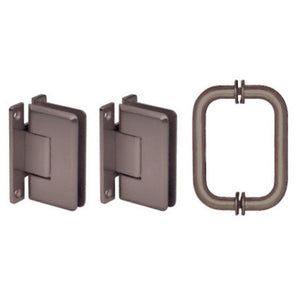

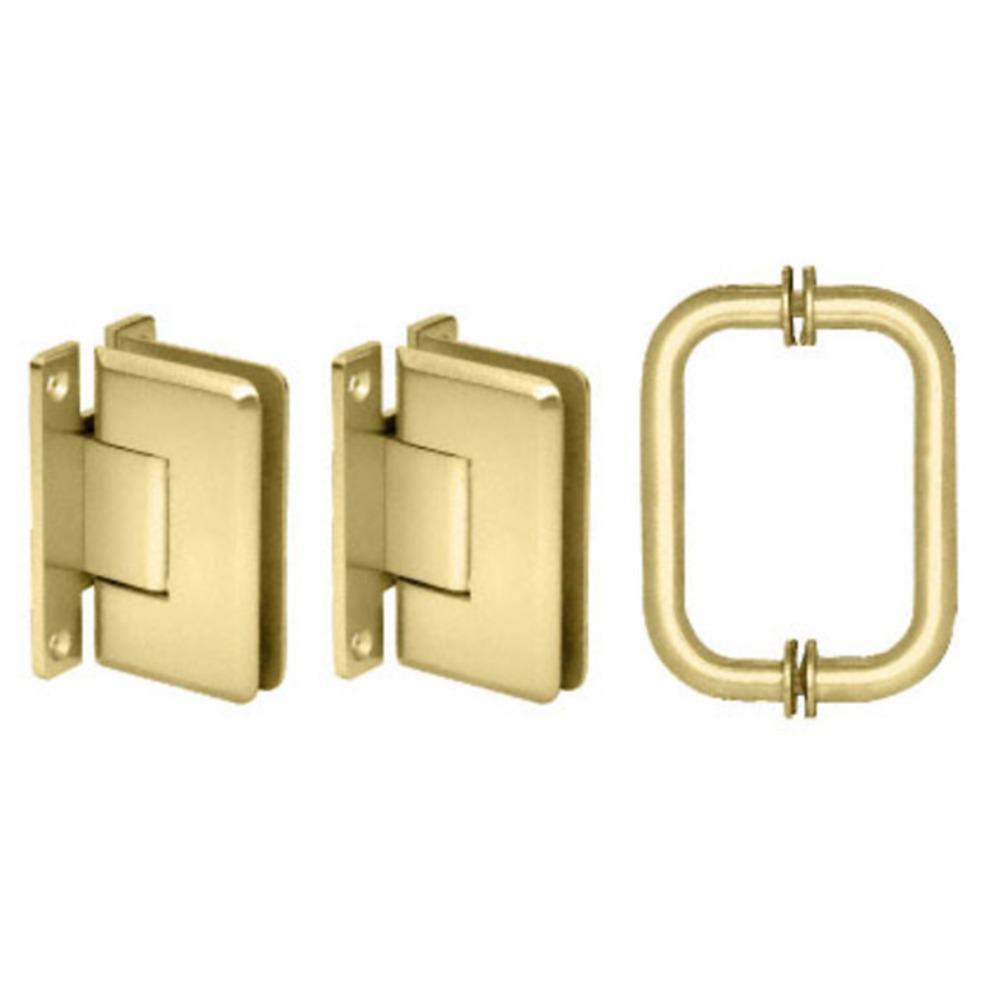

This Shower Door Pull and Hinge Set consists of one Tubular Back-To-Back Pull Handle that has a hole spacing of six inches (152.4 millimeters) center to center, and two Wall Mount Full Back Plate Standard Hinges. The hinges are designed to accommodate 3/8 to 1/2 inch (10 to 12 millimeter) tempered glass. This shower door pull and hinge set is available in a variety of finishes and is used by several shower door manufacturers.

Sold By: Set

5 Degree Pre-Set: No

Adjustable: No

Back Plate: Full

Edge Profile: Beveled

Glazing Thickness: 3/8 in. To 1/2 in. (10 mm To 12 mm)

Material: Brass

Maximum Clamping Screw Torque: 60 lbf.in (677.9 cN.m)

Maximum Door Weight - 2 Hinges: 110 lbs. (49.9 kg)

Maximum Door Weight - 3 Hinges: 140 lbs. (63.5 kg)

Maximum Door Width: 36 in. (914 mm)

Mounting Type: Wall Mount

Self-Centering: Yes

$260.38 USD
Material
Finish
Glass Thickness
In stock

This Shower Door Pull and Hinge Set consists of one Tubular Back-To-Back Pull Handle that has a hole spacing of six inches (152.4 millimeters) center to center, and two Wall Mount Full Back Plate Standard Hinges. The hinges are designed to accommodate 3/8 to 1/2 inch (10 to 12 millimeter) tempered glass. This shower door pull and hinge set is available in a variety of finishes and is used by several shower door manufacturers.

Sold By: Set

5 Degree Pre-Set: No

Adjustable: No

Back Plate: Full

Edge Profile: Beveled

Glazing Thickness: 3/8 in. To 1/2 in. (10 mm To 12 mm)

Material: Brass

Maximum Clamping Screw Torque: 60 lbf.in (677.9 cN.m)

Maximum Door Weight - 2 Hinges: 110 lbs. (49.9 kg)

Maximum Door Weight - 3 Hinges: 140 lbs. (63.5 kg)

Maximum Door Width: 36 in. (914 mm)

Mounting Type: Wall Mount

Self-Centering: Yes
