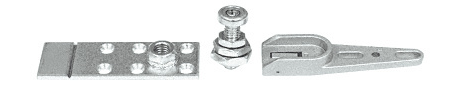

Commercial Door Heavy-Duty Adjustable Dual-Purpose Bottom Pivot Set

PART # CH-579

$52.80 USD

PART # CH-579

Sold By: Each

  • For Use with Both End-Load and Side-Load Arms
  • Dual-Purpose Pivot Mounts Directly to Floor or Threshold


This Commercial Door Heavy-Duty Adjustable Dual-Purpose Pivot Set is for use with 1" (25 mm) deep bottom door rail applications, and can be used in place of the standard Bottom Pivot Set. The solid steel base plate has additional mounting holes to support heavier doors with higher traffic. A 3/16" (5 mm) height adjustment is possible with the door on or off of the pivot. This Pivot is suitable for either end-load or side-load center-hung applications. Maximum weight capacity is 200 lbs. (90.7 kg).

$52.80 USD
Title
In stock

Sold By: Each

  • For Use with Both End-Load and Side-Load Arms
  • Dual-Purpose Pivot Mounts Directly to Floor or Threshold


This Commercial Door Heavy-Duty Adjustable Dual-Purpose Pivot Set is for use with 1" (25 mm) deep bottom door rail applications, and can be used in place of the standard Bottom Pivot Set. The solid steel base plate has additional mounting holes to support heavier doors with higher traffic. A 3/16" (5 mm) height adjustment is possible with the door on or off of the pivot. This Pivot is suitable for either end-load or side-load center-hung applications. Maximum weight capacity is 200 lbs. (90.7 kg).
