Shower Door Brite Anodized 66" Deluxe Header Kit

PART # BH-444

$197.13 USD

PART # BH-444

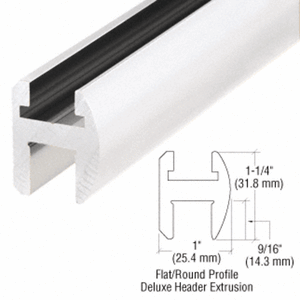

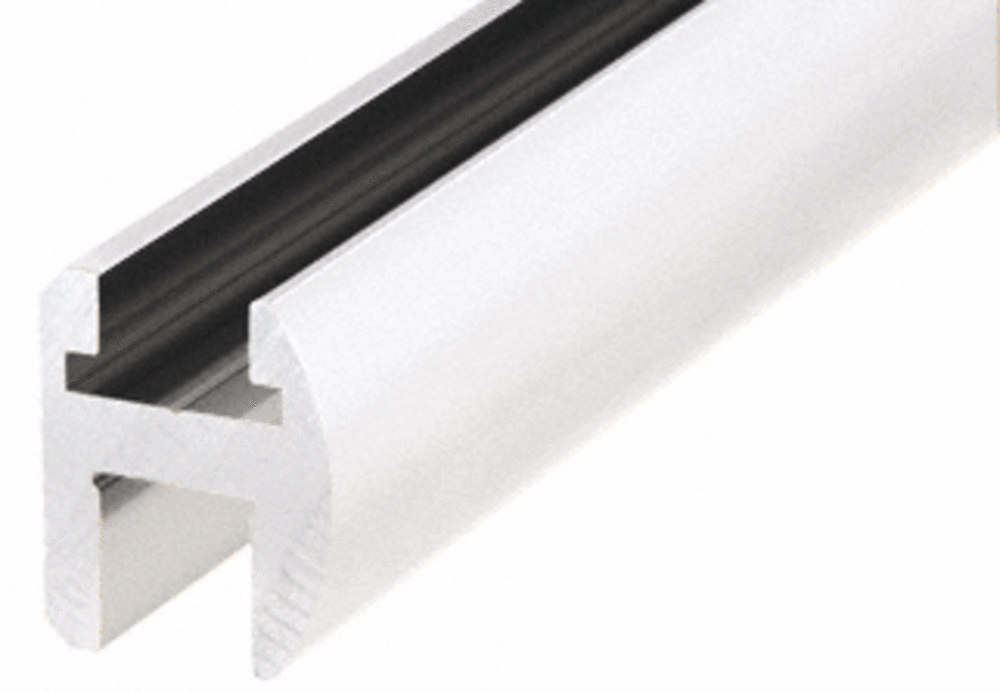

This Shower Door Deluxe Header Kit will provide additional support and a level of safety while securing glass panels not reaching the ceiling. Deluxe Header Kits are designed to allow installers to do in-house fabrication using a selection of component parts. Sold in 66", 98" or 144" lengths, each Header Extrusion has a narrow 1-1/4" (32 mm) face to minimize the visible sight line. 90 degree, 135 degree or Adjustable Corners are sold separately. Also available is a special Adapter Block for use on pivot hinge installations. Brass Wall Brackets are included in each kit. A Blank Mounting Bracket is offered separately for installations where the Header does not meet the wall at 90 degree, and the standard Wall Mounting Brackets cannot be used.

For 5/16", 3/8", and 1/2" (8, 10, and 12 mm) Monolithic Tempered Glass. Secures Shower Enclosure Not Going to Ceiling.

Sold By: Length

Finish/Color: Brite Anodized

Glazing Pocket Width: 1/2 in. (12 mm)

Glazing Thickness: 1/2 in. (12 mm)

Length: 66 in. (1676 mm)

Material: Aluminum

Profile: Flat / Curved

$197.13 USD
Title
In stock

This Shower Door Deluxe Header Kit will provide additional support and a level of safety while securing glass panels not reaching the ceiling. Deluxe Header Kits are designed to allow installers to do in-house fabrication using a selection of component parts. Sold in 66", 98" or 144" lengths, each Header Extrusion has a narrow 1-1/4" (32 mm) face to minimize the visible sight line. 90 degree, 135 degree or Adjustable Corners are sold separately. Also available is a special Adapter Block for use on pivot hinge installations. Brass Wall Brackets are included in each kit. A Blank Mounting Bracket is offered separately for installations where the Header does not meet the wall at 90 degree, and the standard Wall Mounting Brackets cannot be used.

For 5/16", 3/8", and 1/2" (8, 10, and 12 mm) Monolithic Tempered Glass. Secures Shower Enclosure Not Going to Ceiling.

Sold By: Length

Finish/Color: Brite Anodized

Glazing Pocket Width: 1/2 in. (12 mm)

Glazing Thickness: 1/2 in. (12 mm)

Length: 66 in. (1676 mm)

Material: Aluminum

Profile: Flat / Curved
