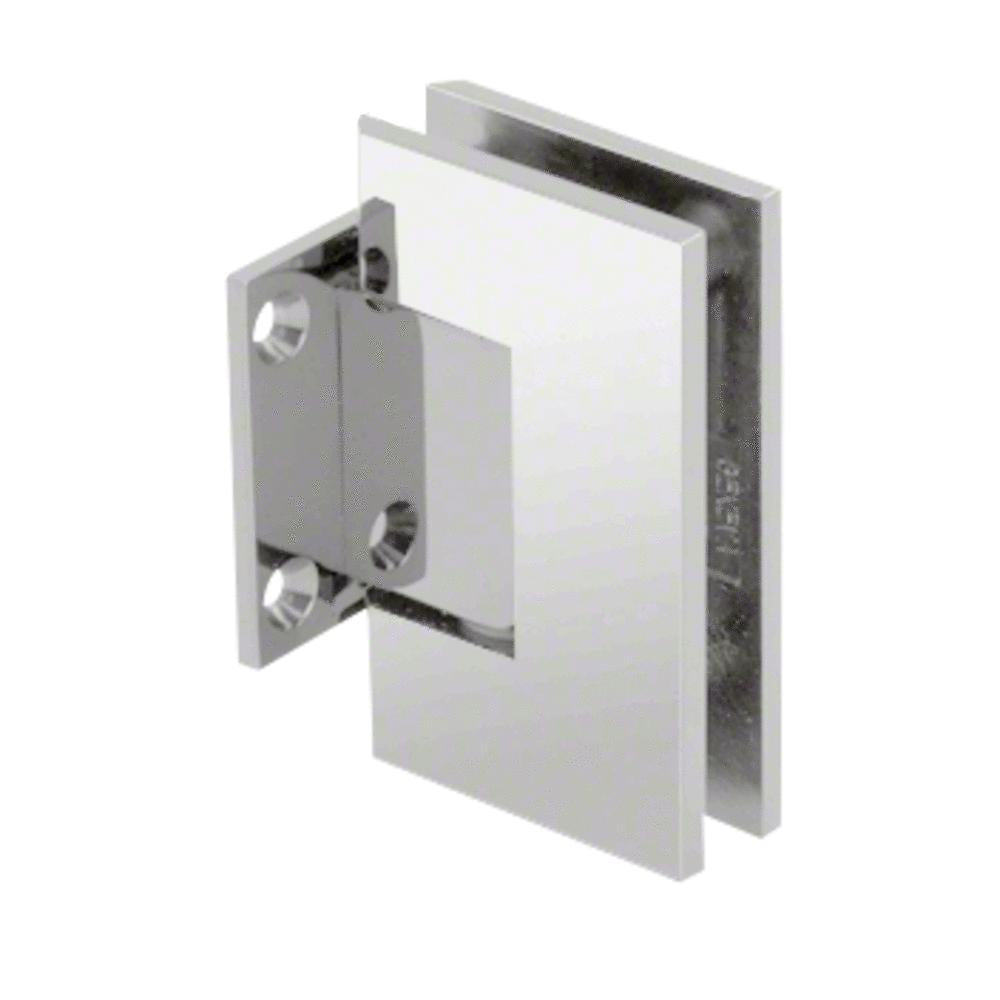

The Geneva Series of professional shower door hinges are able to accommodate 5/16 to 1/2 inch (8 to 12 millimeter) glass. A variety of six styles, including Wall Mount and Glass-to-Glass types, gives design flexibility. The cut-out with the short Back Plate allows glass to be closer to the wall. They are made of solid brass with all moving parts (pins and springs) in stainless steel. Geneva Shower Door Hinges are self-centering, and contain a Reversible 5 Degree Pivot Pin. In addition, Custom Pivot Pins are available to accommodate "off angle" installations. These shower door hinges are available in a variety of finishes and are used by several shower door manufacturers.
Sold By: Each
5 Degree Pre-Set: No
Adjustable: No
Back Plate: Short
Glazing Thickness: 5/16 in. To 1/2 in. (8 mm To 12 mm)

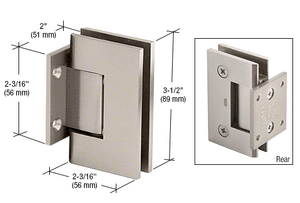

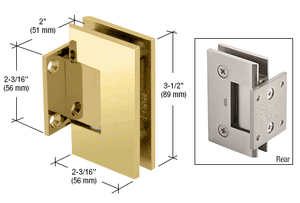

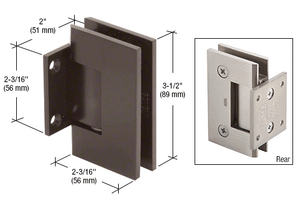

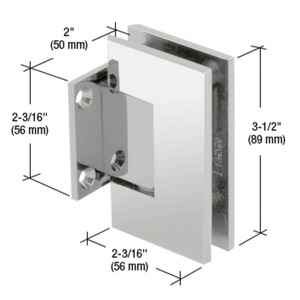

Height: 3-1/2 in. (89 mm)
Material: Brass
Maximum Door Weight - 2 Hinges: 80 lbs. (36.3 kg)
Maximum Door Weight - 3 Hinges: 120 lbs. (54.4 kg)
Maximum Door Width - 2 Hinges: 28"
Maximum Door Width - 3 Hinges: 32"
Mounting Type: Wall Mount
Self-Centering: Yes
Width: 2-3/16 in. (56 mm)
